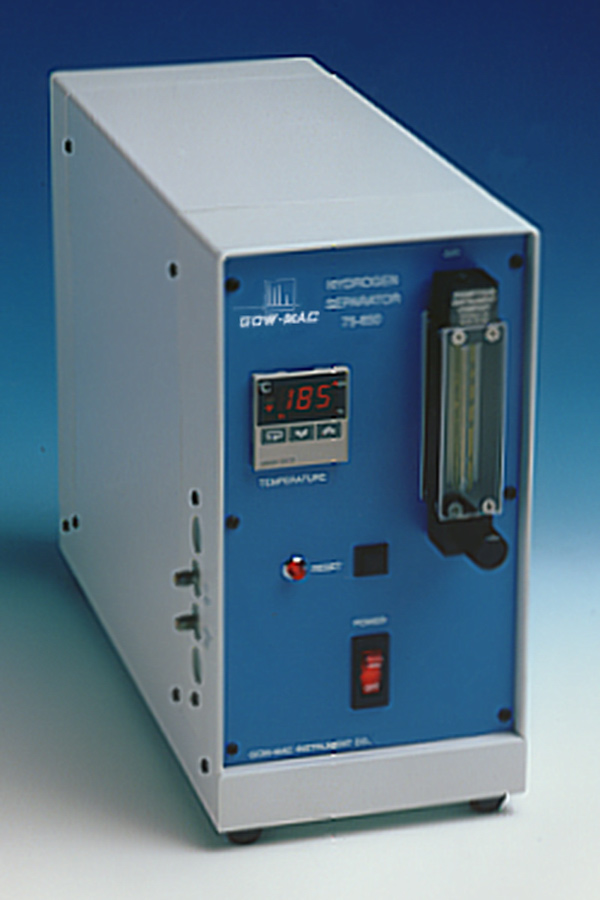

H2 Separator
Model 75-850-BV
The Model 75-850-BV Hydrogen Separator is used to separate a hydrogen sample from the impurities in the sample for analysis from the ppb to ppm range. The 75-850-BV utilizes palladium alloy membrane to perform the separation, the separated hydrogen is converted to steam and vented safely to atmosphere. The 75-850-BV can be regenerated and comes installed with a manual bypass valve for the analysis of other bulk gases when not in use.
| Series # | 75-850-BV |
|---|---|
| Type | Hydrogen Separator |
| Dimensions | 6.5"W x 12" H x 15.5"D |
| Weight | 15 lbs |
| Power | 110V/220V |
| Detector | Palladium Membrane |
| Gas | H2 |
| Temp Range | Ambient |
| Sensitivity | not applicable |
| Range | not applicable |
| Recommended Accessories |
