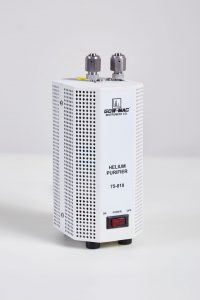

He Purifier
Model 75-810
The Model 75-810 Carrier Gas Purifier is a point of use purifier reducing gas impurities to sub-ppb levels from helium or argon. The Model 75-810 purifier includes a 0.003 μm particle filter and has a maximum flow rate of 1.5 slpm. Available for Helium or Argon carrier gas.
| Model # | 75-810 |
|---|---|
| Type | Carrier Gas Purifier |
| Dimensions | 5" x 4" footprint, 8" height |
| Weight | 5 lbs. |
| Power | 115V/240V |
| Impurities removed | <1 PPB H2O, O2, CO, CO2, H2, N2, THC |
| Gas | He or Ar |
| Temp Range | 375 C operating temp |
| Sensitivity | Grade 7 Purity |
| Leak Rate | <2 x 10 atm cc/sec He |
| Max Pressure | 250 psig |
